Make Distance Meter using Ultrasonic sensor Circuit Diagram Learn how to use the ultrasonic sensor (HC-SR04) with Arduino. This tutorial will teach you what it is, how to assemble the sensor on Arduino, and, at the end, you'll implement it into an alarm system project. Security. Components and supplies. 1. Arduino uno Board. 1. Ultrasonic Sensor - HC-SR04. 1. Active Buzzer 5V (HXD) 1. Breadboard

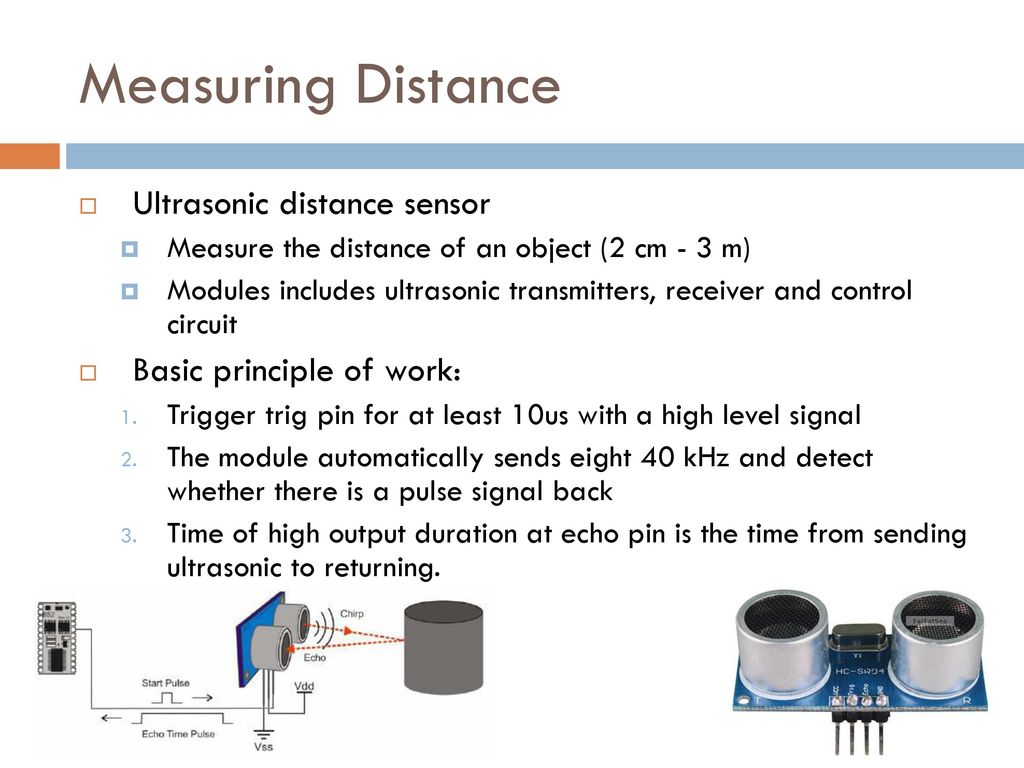

Power Supply: Connect the VCC pin to a 5V power supply and the GND pin to the ground. Triggering: Send a 10 ยตs TTL pulse to the Trig pin to initiate the measurement. Receiving Echo: Monitor the Echo pin; the duration of the high-level signal will indicate the time taken for the sound wave to return. Calculating Distance: Calculate the distance by using the speed of sound and the time interval Working Steps: 1.Ultrasonic Sensor Operation:. The HC-SR04 sensor uses ultrasonic waves to measure the distance to an object.; It has two main parts: Trigger Pin: Sends a short ultrasonic pulse.; Echo Pin: Receives the reflected ultrasonic wave.; The time taken for the wave to return is used to calculate the distance: Distance (cm)=Time (microseconds)ร0.034 /2 For many (outdoor) projects a distance measurement is necessary or advantageous. These small modules are available starting at 1-2 bucks and can measure the distance up to 4-5 meters by ultrasound and are suprisingly accurate. This tutorial shows the connection and control. Hardware HC-SR04 Module (US / UK) Resistors: 330ฮฉ and 470ฮฉ (US / UK) Jumper
how to use ultrasonic sensor with Arduino Circuit Diagram
Description. The Ultrasonic Range Finder is a sensor which uses ultrasonic sound for echolocation to measure the distance between the sensor and the object the sound is being reflected back from. The Range Finder is one of the 3-Wire series sensors. It has two 3-Wire Cables. There is a black, red, and orange "Output" cable which pulses power to a 40KHz speaker; and a black, red, and yellow
how to use ultrasonic sensor with Arduino | home security system , inspire award project | home made @bpexperiment #bpexperiment#arduinotutorials #homesecuri This guide shows how to use the HC-SR04 Ultrasonic Sensor with the ESP32 board using the Arduino core. The ultrasonic sensor uses sonar to determine the distance to an object. We'll show you how to wire the sensor to the ESP32 and provide several example sketches to determine the distance to an object using the HC-SR04. Ultrasonic distance sensors use pulses of ultrasonic sound (sound above the range of human hearing) to detect the distance between them and nearby solid objects. But there are times you might want a bit more accuracy, for example you may be building a measuring tool or might be using your robot to map out the perimeter of a room. If so
